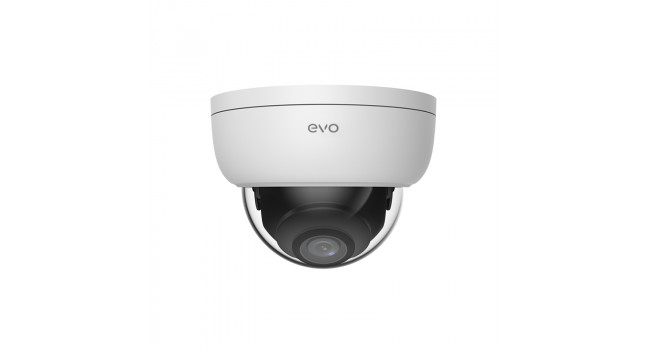

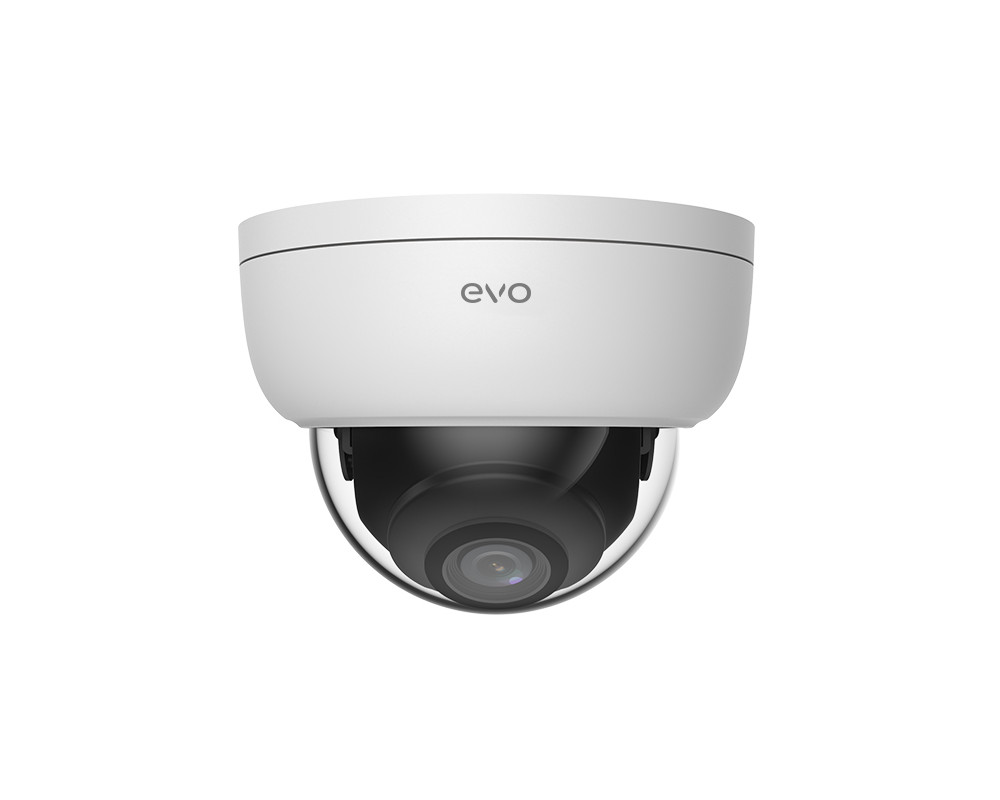

IPC-325-PF40 IP видеокамера
- Модель: IPC-325-PF40
-
- Максимальное разрешение 5Мпикс
- Фиксированный объектив 4.0мм
- Smart ИК, до 30м
- Степень защиты IP67
-
Цена: 32 200 тг.
Видеокамера IPC-325-PF40 EVO в наличии на складе. Купить IP-камеры по выгодной цене в Алматы, Астане, Шымкенте, Караганде и других городах Казахстана. evo — надёжный дистрибьютор.
| IPC-325-PF28 | IPC-325-PF40 | |||||
| Camera | ||||||
| Sensor | 1/3", progressive scan, CMOS | |||||
| Lens | 2.8mm@F2.1 | 4.0mm@F2.1 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | ||
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | ||
| Angle of View (H) | 89.1° | 75.0° | ||||
| Angle of View (V) | 47.3° | 41.6° | ||||
| Angle of View (O) | 94.3° | 81.1° | ||||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 75° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Minimum Illumination | Colour: 0.02Lux (F2.1, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >52dB | |||||
| IR Range | Up to 30m (98ft) IR range | |||||
| Defog | Digital Defog | |||||
| WDR | DWDR | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 20fps;1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP | |||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | |||||
| Interface | ||||||
| Network | 10/100M Base-TX Ethernet | |||||
| General | ||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
| Power consumption: Max 4.5W | ||||||
| Dimensions (Ø x H) | Ø109 x 81mm (Ø4.3” x 3.2”) | |||||
| Weight | 0.33kg (0.73lb) | |||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 4KV | |||||
| Ingress Protection | IP67 | |||||
| Vandal Resistant | IK10 | |||||
| Reset Button | N/A | |||||
IPC-325-PF40 IP видеокамера Datasheet
