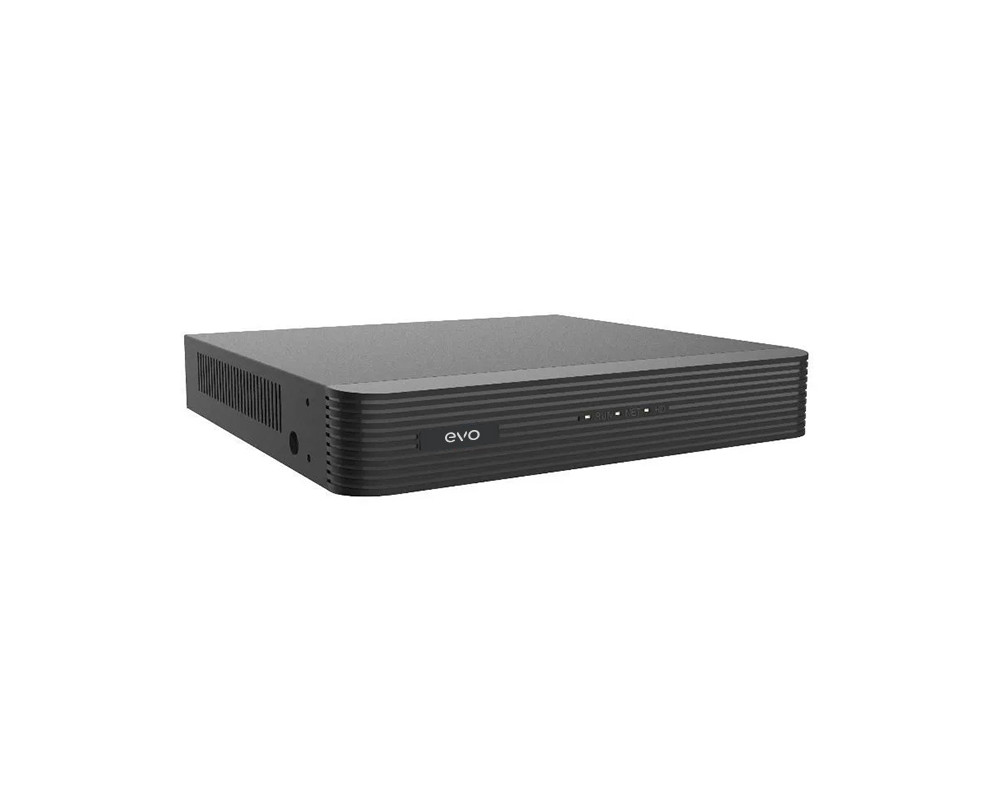

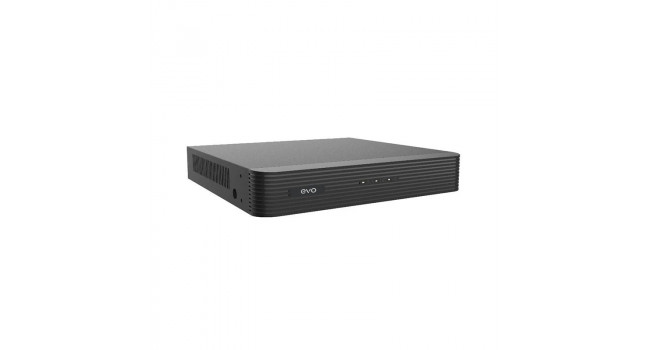

NVR-1116E2 NVR регистратор
- Модель: NVR-1116E2
-
- Количество каналов 16
- Количество HDD 1
- Объем HDD до 6TB
- Запись с разрешением до 8MP
-
Цена: 39 000 тг.
NVR регистратор NVR-1116E2 EVO в наличии на складе. Купить NVR регистраторы по выгодной цене в Алматы, Астане, Шымкенте, Караганде и других городах Казахстана. evo — надёжный дистрибьютор.
| Model | NVR-1116E2 |
| Video/Audio Input | |
| IP Video Input | 16-ch |
| Network | |
| Incoming Bandwidth | 64Mbps |
| Outgoing Bandwidth | 32Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, DHCP |
| Video/Audio Output | |
| HDMI/VGA Output | VGA: 1024X768@60,1280X720@60, 1440X900@60, 1280X1024@60,1600X1200@60,1920X1080@50, 1920X1080@60 HDMI: 1024X768@60,1280X720@60, 1440X900@60, 1280X1024@60,1600X1200@60,1920X1080@50, 1920X1080@60, 3840X2160@30 |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, 3.5mm |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Decoding | |
| Decoding format | H.265/H.264 |
| Liveview/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 8MP@30, 1 x 5MP@30, 2 x 4MP@30, 4*3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| General | |
| Power Supply | 12V DC Power Consumption: ≤3.2 W (without HDD) |
| Working Environment | -10°C~+55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 260mm × 243mm × 46mm (10.2" × 9.6" × 1.8") |
| Weight (without HDD) | ≤1kg (2.2lb) |
NVR-1116E2 NVR регистратор Datasheet
