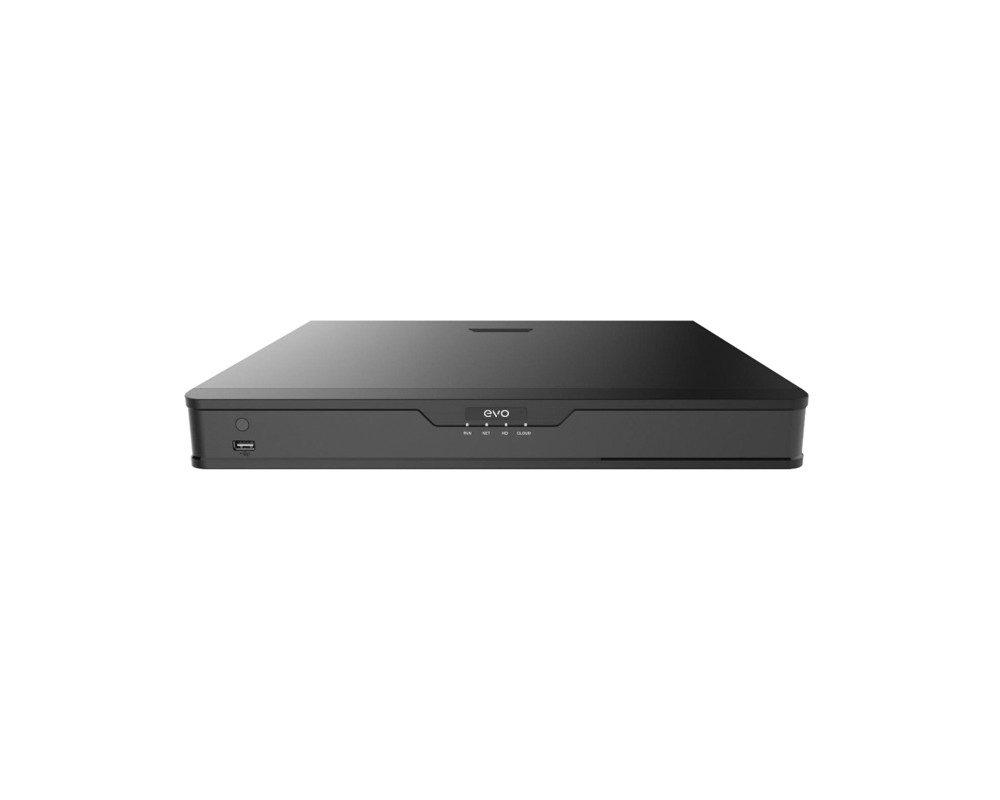

NVR-216S2-P16 NVR регистратор с PoE
- Модель: NVR-216S2-P16
-
- Количество каналов 16
- Количество HDD 2
- Объем HDD до 10TB
- Запись с разрешением до 8MP
-
Цена: 0 тг.
NVR регистратор NVR-216S2-P16 EVO в наличии на складе. Купить NVR регистраторы по выгодной цене в Алматы, Астане, Шымкенте, Караганде и других городах Казахстана. evo — надёжный дистрибьютор.
| Model | NVR-216S2-P8 | NVR-216S2-P16 |
| Video/Audio Input | ||
| IP Video Input | 8-ch | 16-ch |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 160Mbps | |
| Outgoing Bandwidth | 96Mbps | |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | VGA: 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50, 1920X1080@60 HDMI: 4K(3840x2160@30), 4K (3840x2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50, 1920X1080@60 | |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 8-ch | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
| Decoding | ||
| Decoding format | Ultra265/H.265/H.264 | |
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30 | 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1 |
| Hard Disk | ||
| SATA | 2 SATA interfaces | |
| Capacity | up to 10TB for each disk | |
| External Interface | ||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0 | |
| Alarm In | 4-ch | |
| Alarm Out | 1-ch | |
| PoE | ||
| Interface | 8 independent 100Mbps PoE network interfaces | 16 independent 100Mbps PoE network interfaces |
| Max Power | Max 30W for single port Max 130W in total (16.25W for each) | Max 30W for single port Max 240W in total (15W for each) |
| Supported Standard | IEEE 802.3af/at | |
| General | ||
| Power Supply | 220V AC Power Consumption: ≤9 W (without HDD) | |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 380mm ×315mm × 53mm (15.0" × 12.4" ×2.1") | |
| Weight (without HDD) | ≤2.4kg (5.29lb) | |
NVR-216S2-P16 NVR регистратор с PoE Datasheet
