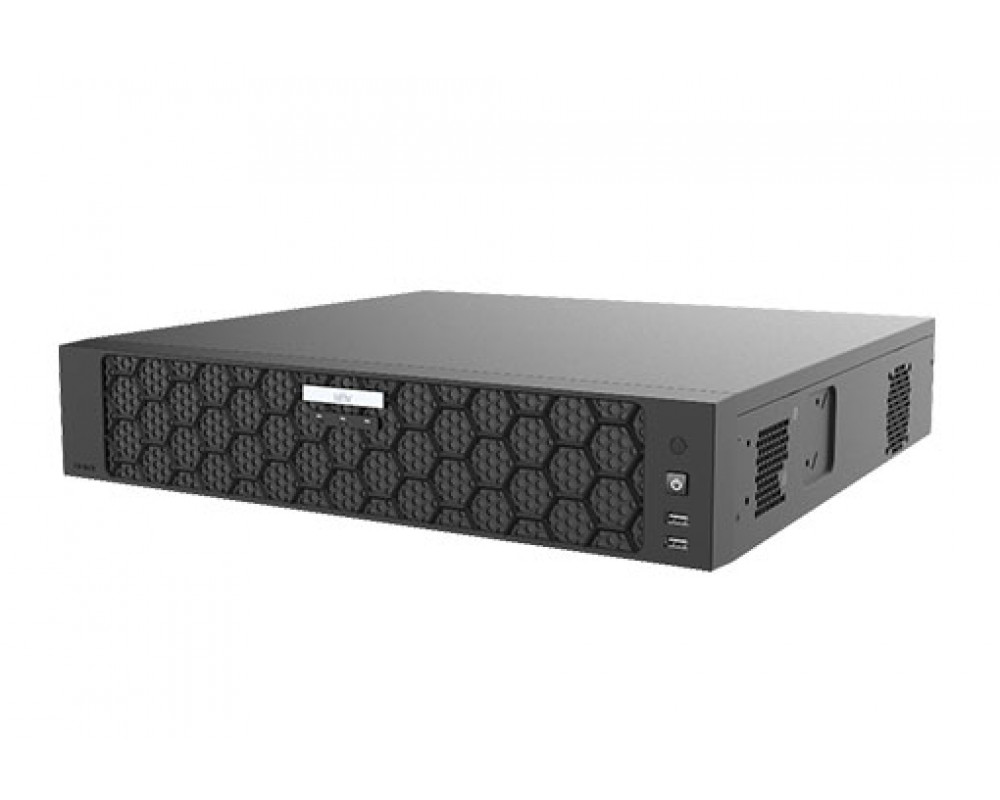

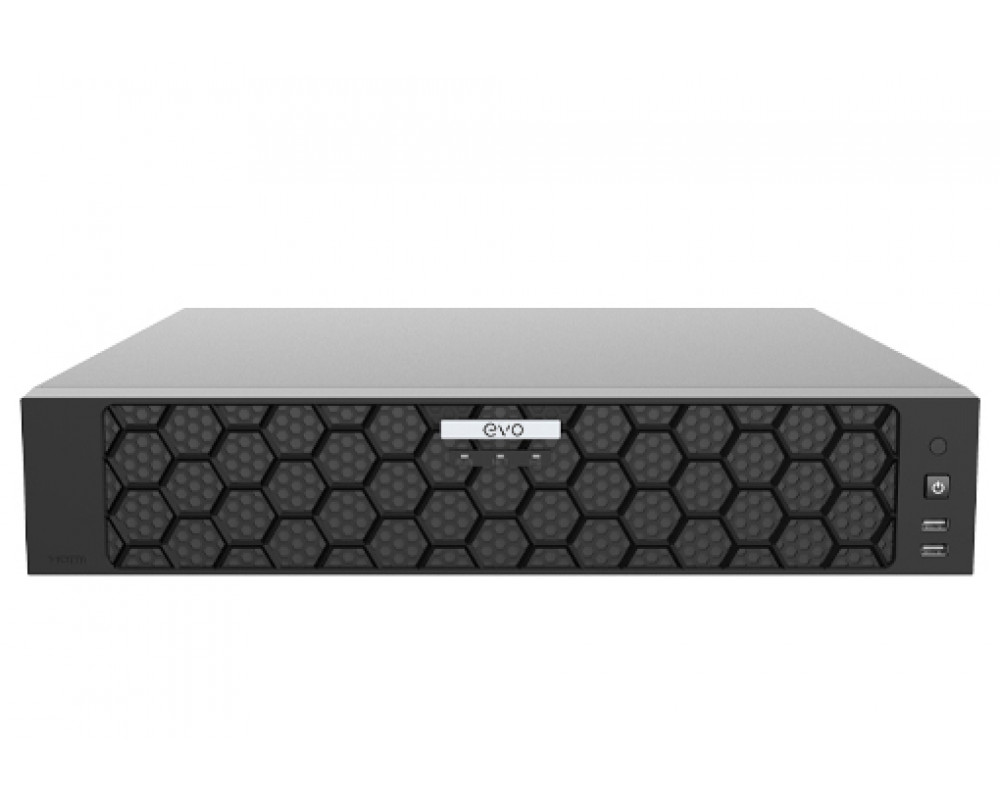

NVR-508-32-IQ NVR регистратор
- Модель: NVR-508-32-IQ
-
- Количество каналов 32
- Количество HDD 8
- Объем HDD до 12TB
- Запись с разрешением до 16MP
-
Цена: 320 000 тг.
- Поддержка видеоформатов: Ultra 265, H.265, H.264
- Вход: 16/32/64 каналов
- Поддержка основных камер по ONVIF (профили S, G, T) и протоколу RTSP
- Независимые видеовыходы VGA и HDMI (для NVR508-64B по умолчанию — одновременный вывод; независимый вывод настраивается)
- Запись с разрешением до 16 Мп
- 8 × SATA HDD, до 12 ТБ на каждый диск
- Поддержка горячего резерва N+1
- Технология ANR — повышение надёжности хранения при обрыве сети
- Поддержка облачного обновления ПО
NVR регистратор NVR-508-32-IQ EVO в наличии на складе. Купить видеорегистраторы по выгодной цене в Алматы, Астане, Шымкенте, Караганде и других городах Казахстана. evo — надёжный дистрибьютор.
| Model | NVR-508-16-IQ | NVR-508-32-IQ | NVR-508-64-IQ | |||
| Video/Audio Input | ||||||
| IP Video Input | 16-ch | 32-ch | 64-ch | |||
| Audio Input | 1-ch, RCA | |||||
| Network | ||||||
| Incoming bandwidth | 320Mbps | |||||
| Outgoing bandwidth | 160Mbps | |||||
| Remote Users | 128 | |||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP | |||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | |||||
| Video/Audio Output | ||||||
| HDMI/VGA Output | HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 | |||||
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
| Audio Output | 1-ch, RCA | |||||
| Two-way Audio | 1-ch, RCA(Using the audio input and output) | |||||
| Audio Compression | G.711A, G.711U | |||||
| Synchronous Playback | 16-ch | |||||
| Live View Display | VGA: 1/4/6/8/9/16 HDMI: 1/4/6/8/9/16 | VGA: 1/4/6/8/9/16/25/36 HDMI: 1/4/6/8/9/16/25/36 | Simultaneous Output: VGA: 1/4/6/8/9/16/25/36/64 HDMI: 1/4/6/8/9/16/25/36/64 Independent Output: VGA: 1/4/6/8/9/16/25/32 HDMI: 1/4/6/8/9/16/25/32 | |||
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 | 3/4/5/7/9/10/12/16/32 | |||
| Snapshot | ||||||
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution | |||||
| Decoding | ||||||
| Decoding Format | Ultra 265/H.265/H.264 | |||||
| Live View/Playback | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
| Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 64 x D1 | |||||
| Hard Disk | ||||||
| SATA | 8 SATA interfaces | |||||
| Capacity | Up to 12TB for each disk | |||||
| Disk Group | Support | |||||
| Smart | ||||||
| VCA Detection by Camera | Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring | |||||
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report | |||||
| People Counting | People Flow Counting, Crowd Density Monitoring | |||||
| Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Temperature Detection, Video Metadata, Traffic Monitoring by Camera | Total 8-ch | |||||
| General Alarm | ||||||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||
| External Interface | ||||||
| Network Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |||||
| USB Interface | Front: 2 x USB2.0, Rear panel: 1 x USB3.0 | |||||
| RS232 | NA | |||||
| RS485 | 1 | |||||
| Alarm In | 16-ch | |||||
| Alarm Out | 4-ch | |||||
| General | ||||||
| Power Supply | 100~240V AC Power Consumption: ≤ 32W (without HDD) | |||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |||||
| Dimensions (W×D×H) | 442mm × 426mm × 89mm (17.4" × 16.8" × 3.5") | |||||
| Weight (without HDD) | ≤ 4Kg (8.80lb) | |||||
| Certification | ||||||
| Certification | CE, FCC, UL, RoHS, WEEE | |||||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |||||
| FCC | Part15 Subpart B | |||||
NVR-508-32-IQ NVR регистратор Datasheet
